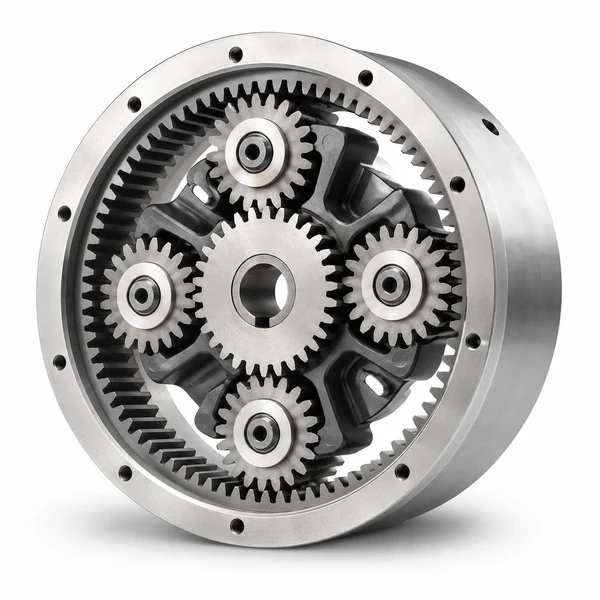

Custom Epicyclic Gear Set
Matched sun, planet and internal ring gear scope for a drawing-led epicyclic transmission RFQ.
Product family
Epicyclic Gear Products
Drawing-led RFQ product families for custom planetary gearing and assemblies.
Category overview
Define the complete engineering context
Review the complete gear relationship, interfaces, duty and verification basis before releasing a product definition.
- Controlled tooth and mating-part data
- Installation datums and interface envelope
- Duty cycle, environment and acceptance method
RFQ product range
Epicyclic Gear Products products
Select a product family to review its drawing inputs, mating relationships, duty questions and inspection planning.
Helical Ring Gear
Internal helical ring gear scope for applications requiring a controlled helical epicyclic mesh.

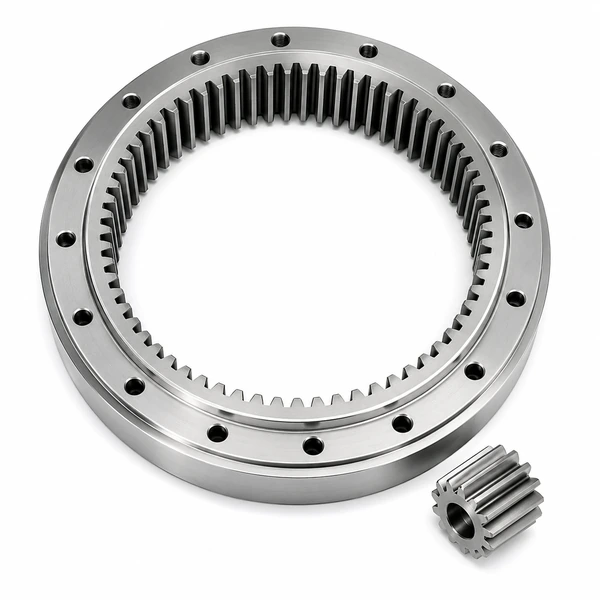

Internal Ring Gear
Custom internal spur ring gear for planetary and other internal-mesh transmission projects.

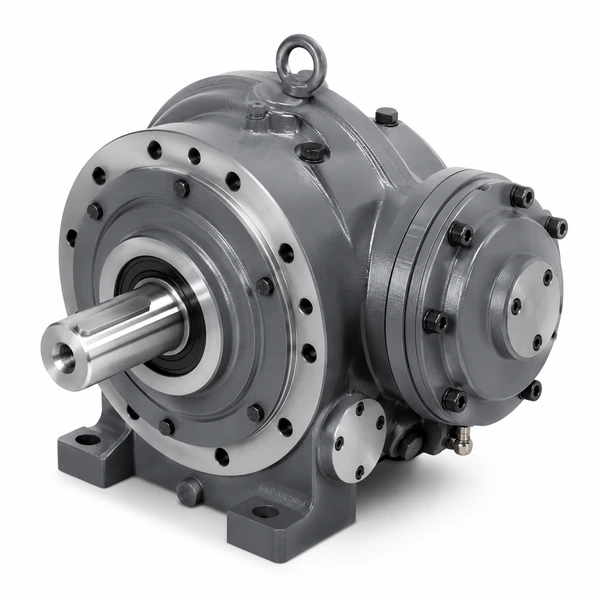

Planetary Gearbox Assembly
Engineered planetary gearbox assembly scope covering gearing, carrier, housing and machine interfaces.

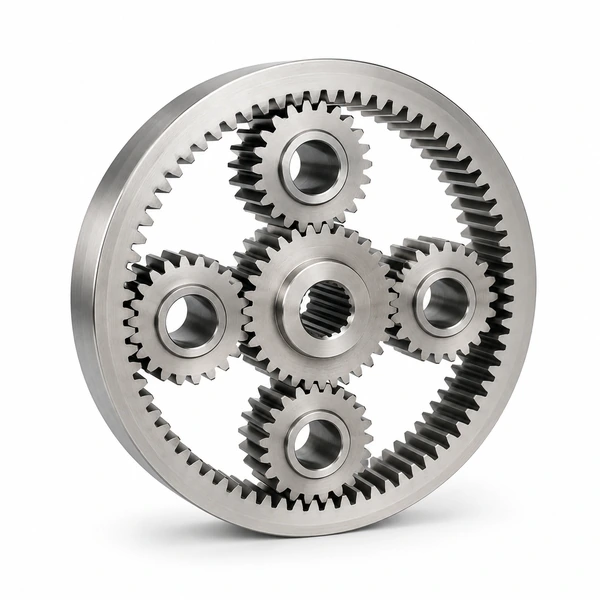

Sun and Planet Gears
External sun and planet gears reviewed for mesh compatibility, carrier support and duty.
Application context
Where this product family is used
Industrial machinery
Compact coaxial drives for production equipment and custom mechanisms.
Automation
Reversing and positioning systems with controlled interfaces and duty cycles.
Mobile equipment
Drive functions that require shock, sealing and structural-load review.
Selection variables to include in the RFQ
| Data group | Information to provide |
|---|---|
| Motion | Input, output and restrained member; ratio and direction. |
| Duty | Continuous, peak, reversing and shock load context. |
| Interfaces | Bores, splines, pilots, flanges, bearings and mounting envelope. |
| Verification | Tooth, runout, backlash, contact and document requirements. |
Category FAQ
What should be included in the first enquiry?
Send the available drawing or assembly sketch, motion relationship, duty summary, interfaces, quantity and required inspection records.
Are published dimensions or ratings available?
This catalogue is used for custom RFQs. Dimensions and ratings are confirmed only against controlled geometry and duty data.
Engineering enquiry
Send the category-specific RFQ inputs
Attach the drawing or assembly sketch and identify the controlled geometry, interfaces, operating duty and required inspection records.
