Planetary Slewing Drives

EP700-series slewing drives for excavator, crane and rotating-platform duties with model-specific ratio and torque ranges.

Category overview

Define the complete engineering context

Slewing drives combine planetary reduction with a flange-supported output shaft or integral pinion. The product table separates excavator and crane maximum torque values and lists ratio and input-speed limits.

  • Controlled tooth and mating-part data
  • Installation datums and interface envelope
  • Duty cycle, environment and acceptance method

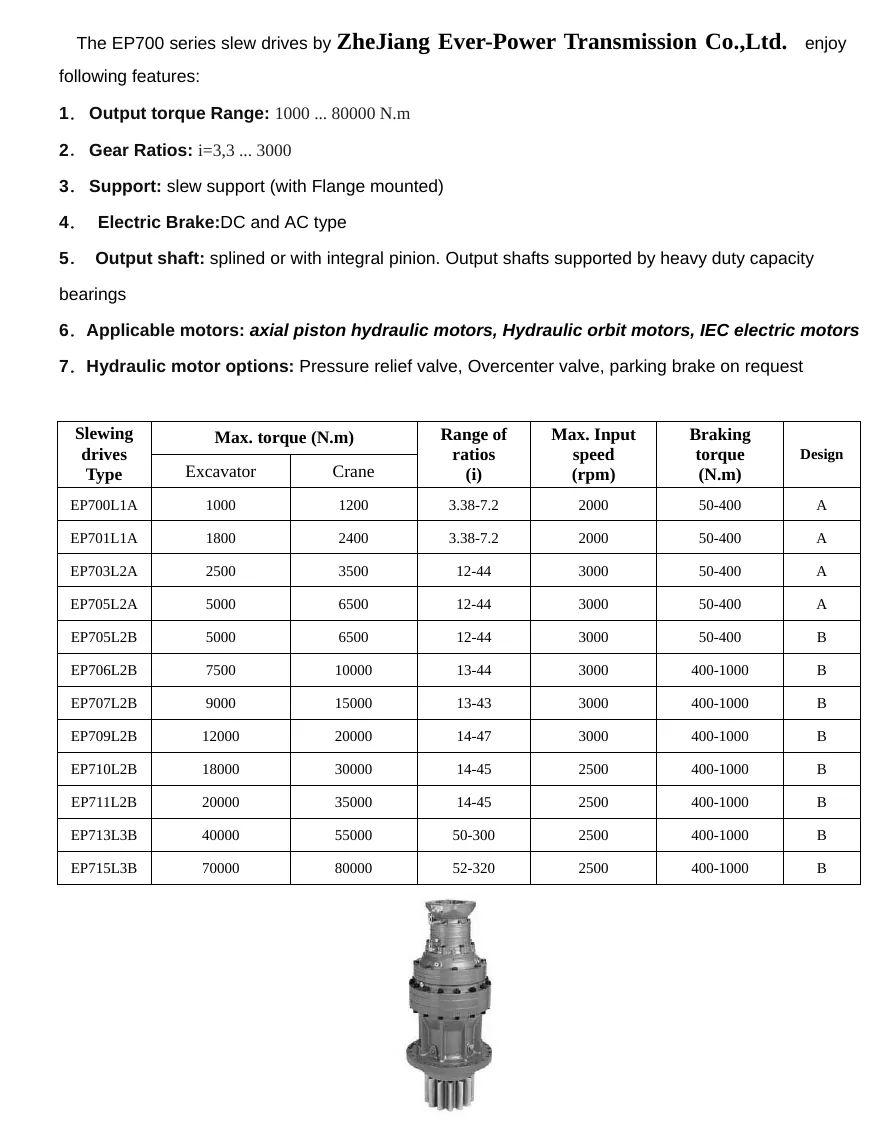

EP700 slewing drive dimension and parameter view
EP700 slewing-drive technical reference view from the product range.

RFQ product range

Planetary Slewing Drives products

Select a product family to review its drawing inputs, mating relationships, duty questions and inspection planning.

EP700 L1A planetary drive product view

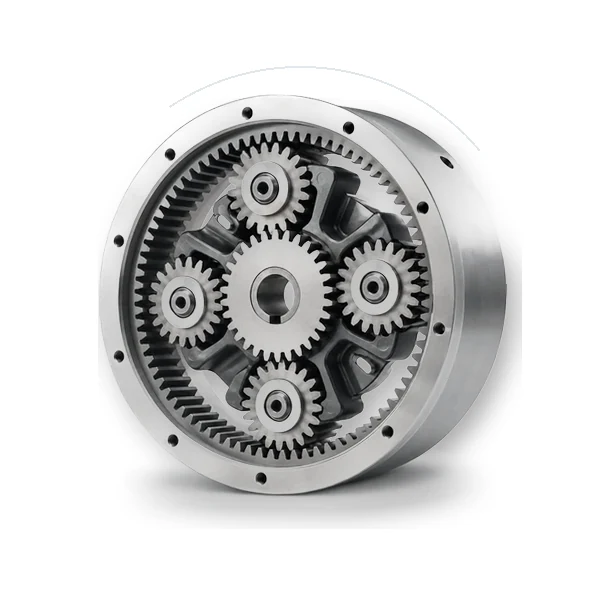

EP700 L1A Planetary Slewing Drive

EP700 L1A planetary slewing drive combines a listed 1,000 / 1,200 N·m maximum torque, 3.38–7.2 ratio selection and 2,000 rpm maximum input speed with a machine-side flange-supported output with spline or integral pinion options. These figures support a focused first review of motor, brake, mounting and duty requirements.

Review RFQ inputs

EP705 L2B planetary drive product view

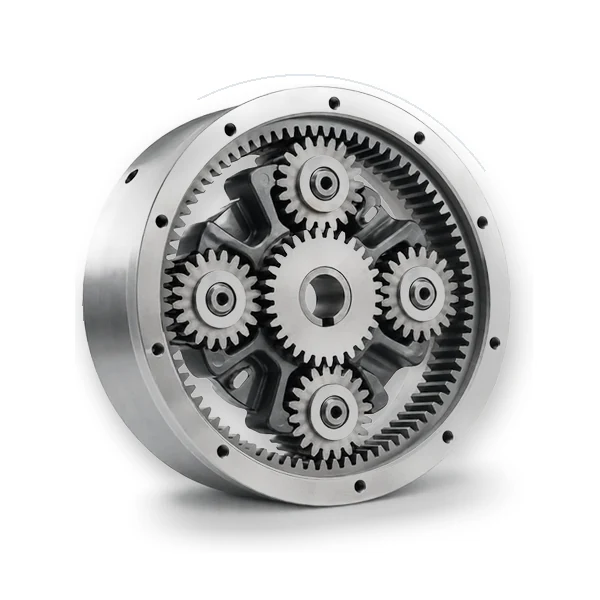

EP705 L2B Planetary Slewing Drive

EP705 L2B planetary slewing drive combines a listed 5,000 / 6,500 N·m maximum torque, 12–44 ratio selection and 3,000 rpm maximum input speed with a machine-side flange-supported output with spline or integral pinion options. These figures support a focused first review of motor, brake, mounting and duty requirements.

Review RFQ inputs

EP715 L3B planetary drive product view

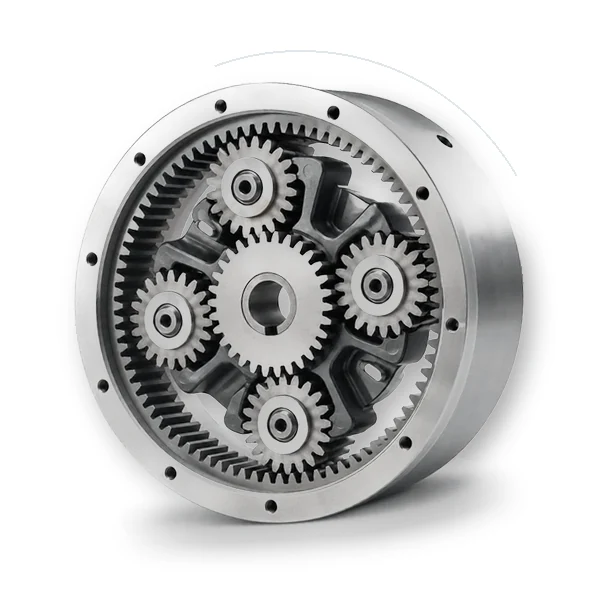

EP715 L3B Planetary Slewing Drive

EP715 L3B planetary slewing drive combines a listed 70,000 / 80,000 N·m maximum torque, 52–320 ratio selection and 2,500 rpm maximum input speed with a machine-side flange-supported output with spline or integral pinion options. These figures support a focused first review of motor, brake, mounting and duty requirements.

Review RFQ inputs

Application context

Where this product family is used

Excavator swing systems

Rotating upper structures with hydraulic-motor input and holding requirements.

Crane slewing mechanisms

Rotating booms and platforms where load holding and controlled deceleration are central.

Industrial rotary platforms

Turntables, positioning systems and rotating process equipment.

Manufacturing line shown in the product range
Planetary Slewing Drives engineering review

Engineering basis

Interfaces deserve the same discipline as the internal gearing. Define the input driver, adapter, shaft or spline, output shaft or flange, pilot diameters, fastener pattern, load application point, and the space available for installation and service. When the drive supports external radial or axial load, show the force direction and distance from the bearing reference. When the drive couples to a wheel, track sprocket, slew ring, rack pinion, pulley, or drum, include the mating geometry. Those details often decide whether a model that looks adequate for planetary slewing drives is actually suitable in the machine. Thermal and lubrication questions should be resolved before release rather than after a prototype runs hot. State ambient temperature, operating hours, input speed, duty cycle, mounting orientation, expected ventilation, and whether the gearbox is inside an enclosure. Confirm lubricant type, viscosity or manufacturer-approved grade, fill quantity, fill and drain access, and any oil-circulation or cooling requirement. The purpose is not to add paperwork; it is to ensure that the selected arrangement can maintain a stable oil film and acceptable temperature while delivering a defensible family-level shortlist. Acceptance criteria should be tied to function. For a precision axis, backlash, torsional stiffness, runout, pitch or tooth accuracy may matter. For mobile equipment, brake release, holding behavior, sealing, valve integration, and output-bearing loads may dominate. For process machinery, temperature, leakage, vibration, shaft loading, and service access may be more important. Define which characteristics are controlled on the drawing, which need inspection records, and which are verified by a functional test. This evidence-based approach reduces ambiguity around planetary slewing drives and gives both buyer and supplier the same release target.

Inspection and test equipment shown in the product range
Planetary Slewing Drives engineering review

Duty and interfaces

When information is incomplete, mark the gap instead of replacing it with an invented value. A useful RFQ can still proceed with an application sketch, motor data, target motion, estimated duty, and the known interfaces, provided the missing confirmation is visible. The supplier can then return a data-request list or a provisional configuration. For Planetary Slewing Drives, the key is traceability: the final model, ratio, mounting, options, and acceptance method should all map back to the operating conditions that justified them. A final cross-check should ask what happens if one assumption changes. Consider a higher start frequency, a larger wheel or pinion radius, a warmer ambient condition, a different mounting orientation, or a new external load. If any of those changes can invalidate the selection, record the dependency in the quotation notes. That practice is particularly valuable for planetary slewing drives, because it prevents a technically correct selection from being copied into a second machine with a materially different duty. The released configuration should therefore be treated as application-specific, even when it belongs to a standard product family. Planetary Slewing Drives should be treated as an engineering decision about planetary slewing drives, not as a lookup exercise. The first objective is an application-specific model choice. Begin with the machine function and document the operating point in units that can be checked independently: torque at the driven member, rotational or linear speed, the timing of acceleration and deceleration, and the duration of normal and peak conditions. For planetary slewing drives, that sequence matters because the same nominal power can produce very different gearbox loads when ratio, inertia, start frequency, or external forces change. The working record should explicitly cover duty type, ratio range, output interface, bearing loads, brake and control.

Manufacturing line shown in the product range
Planetary Slewing Drives engineering review

Verification and release

A strong review separates source-backed product data from application assumptions. Published model values can define a feasible envelope, but the machine-side calculation remains the buyer or system designer input until it is confirmed. In the context of planetary slewing drives, record which values came from a controlled drawing or product source, which were calculated from machine geometry, and which remain provisional. This prevents unclear acceptance after order. It also makes later changes easier to manage because an engineer can see whether a revised motor, wheel radius, duty cycle, or mounting arrangement changes the gearbox requirement or only the surrounding interface. The selection should be checked at more than one operating condition. A normal production point establishes continuous demand; an acceleration or start point establishes short-duration torque; a jam, emergency, wind, slope, or braking event may establish a separate peak. Each condition should carry a duration and expected frequency. That distinction is especially important when reviewing planetary slewing drives, because mechanical capacity, bearing life, brake capacity, and thermal capacity do not respond to load in the same way. A concise duty table is more useful than a single oversized safety factor, and it gives the supplier a reproducible basis for confirming traceable acceptance evidence. Interfaces deserve the same discipline as the internal gearing. Define the input driver, adapter, shaft or spline, output shaft or flange, pilot diameters, fastener pattern, load application point, and the space available for installation and service. When the drive supports external radial or axial load, show the force direction and distance from the bearing reference. When the drive couples to a wheel, track sprocket, slew ring, rack pinion, pulley, or drum, include the mating geometry. Those details often decide whether a model that looks adequate for planetary slewing drives is actually suitable in the machine.

Selection variables to include in the RFQ

Data group Information to provide
Duty type Use the correct excavator or crane torque column and describe shock events.
Ratio range Coordinate rotation speed with motor speed and slew-ring pinion ratio.
Output interface Specify spline or integral pinion details and slew-ring geometry.
Bearing loads Confirm radial, axial and overturning loads carried by the output support.
Brake and control Define AC/DC or hydraulic braking, release conditions and emergency holding.
